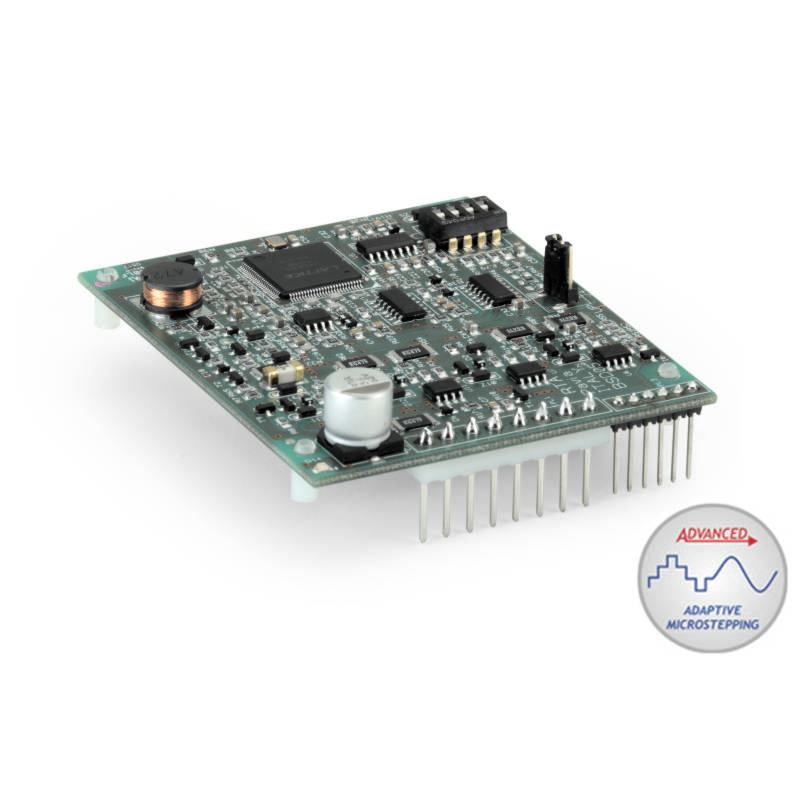

Accionamiento open-frame BSD02.S ( ADVANCED )
( 24 - 48 VDC 0.7 - 2.2 Amp ) - Conectores de soldadura

INTRODUCCIÓN

► New series of microstep stepping motor drives specifically developed for small and mid-size stepping motors.
► Ultra-compact and optimized design to reduce space and cost, combined with Adaptive Microstepping technology ensuring noise and vibration suppression.
► Target: simple and effective motion control solutions requiring low power, high precision, smoothness of movement and low acoustic noise.
► Ideal solution to replace integrated circuits and self-made, low power drives. The perfect choice for small routers, medical, 3D printers and all types of compact machines.

HIGHLIGHTS


► Full digital microstepping drive.
► Adaptive microstepping up to 3.200 step/rev.
► Intelligent management of the current profile that achieves good results in terms of smoothness of movement, low noise and vibration control.
► Highly compact, easy to use and cost effective solution. This system is designed to be soldered to a PCB.
► A highly sophisticated control system, preserving anyhow the traditional ease of use of R.T.A. drives.

ESPECIFICACIONES TÉCNICAS

► Version: open frame drive in 78 x 68 x 27 mm, equipped with solder pin connectors.
► Range of operating voltages: 24-48 VDC.
► Range of current: 0.7-2.2 Amp. Setting up to four possible values by means of a dip-switch.
► Microstepping: 400, 800, 1.600, 3.200 steps/revolution. Setting by means of a dip- switches.
► Automatic current reduction at motor standstill.
► Management of the current profile setting by means of a dip-switch.
► Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
► Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
► Warranty: 24 months.


SUGGESTED MOTOR/DRIVE COUPLING
