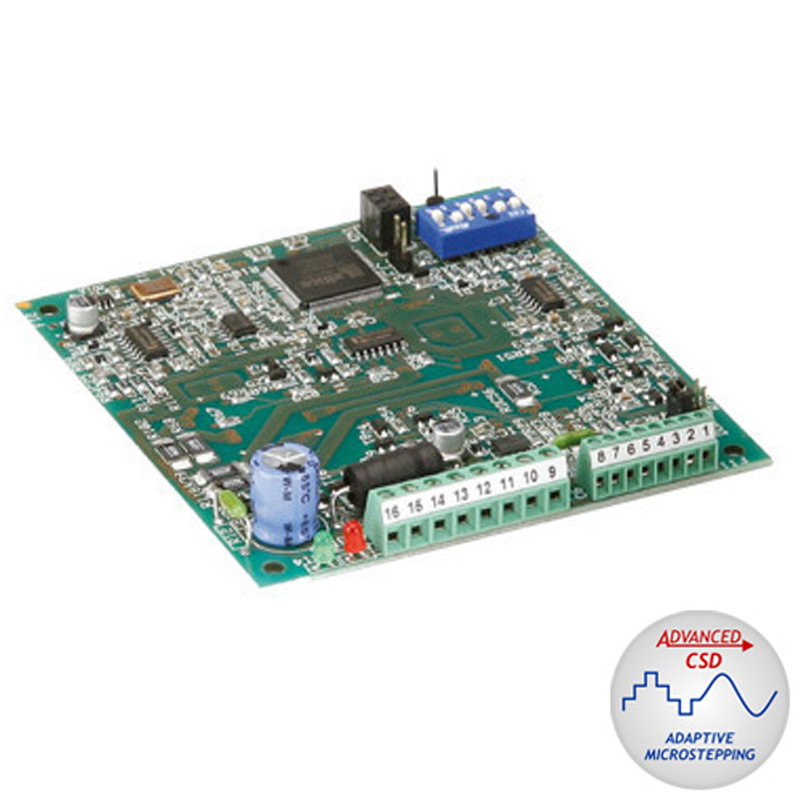

Accionamiento abierto A-CSD 02.V ( ADVANCED )
( 24 - 48 VDC 0.7 - 2.4 Amp ) con Conectores tipo tornillo

INTRODUCCIÓN

► New series of bipolar microstep stepping motor drives, specifically developed for applications sensitive to acoustic noise and vibration.
► Significant evolution of the CSD series, preserving backward mechanical, electrical and applicative compatibility.
► Target: advanced applications requiring high precision, smoothness of movement and low acoustic noise.

HIGHLIGHTS


► Full digital microstepping drive.
► Adaptive microstepping up to 3.200 step/rev.
► Intelligent management of the current profile that achieves good results in terms of smoothness of movement, low noise and vibration control.
► A highly sophisticated control system, preserving anyhow the traditional ease of use of R.T.A. drives.
►UL Recognized

ESPECIFICACIONES TÉCNICAS

► Version: open frame drive in 92 x 85 x 22 mm, equipped with screw-type connectors.
► Range of operating voltages: 24-48 VDC.
► Range of current: 0.7-2.4 Amp. Setting up to eight possible values by means of a dip-switch.
► Microstepping: 400, 800, 1.600 and 3.200 steps/revolution. Setting by means of dip-switches.
► Automatic current reduction at motor standstill.
► Management of the current profile setting by means of a dip-switch.
► Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection with thermal sensor.
► Electronic damping facility for further acoustic noise and mechanic vibrations reduction.
► Warranty: 24 months.
