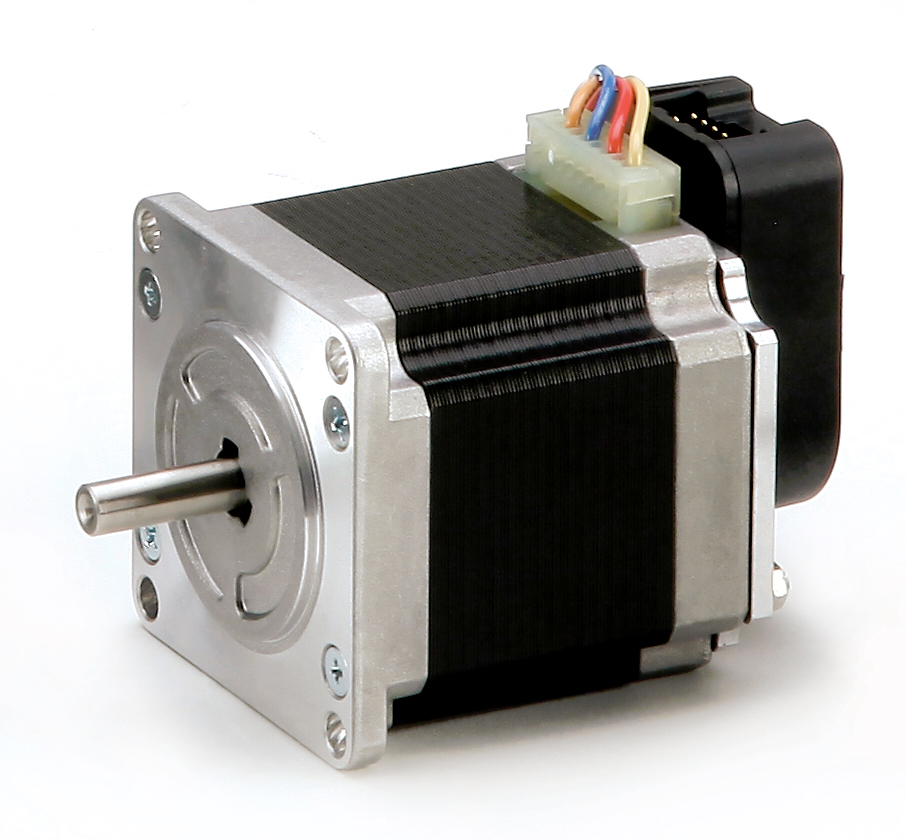

MOTOR CON ENCODER EM 2H1M-0XX0
Brida 56 mm. Nema 23

INTRODUCCIÓN

EM 2H1M-0XX0 encoder motor is available with three different encoder versions, with 400 cpr and 4000 cpr resolution, with or without index.
It is characterized by SANYO DENKI stepping motor 103-H7123-1711 flange size 56 mm. ( NEMA 23 ) with holding torque up to 110 Ncm and it can be coupled with the following R.T.A. drive series: BSD, CSD, NDC, ADW, HGD, FLEX DRIVE.

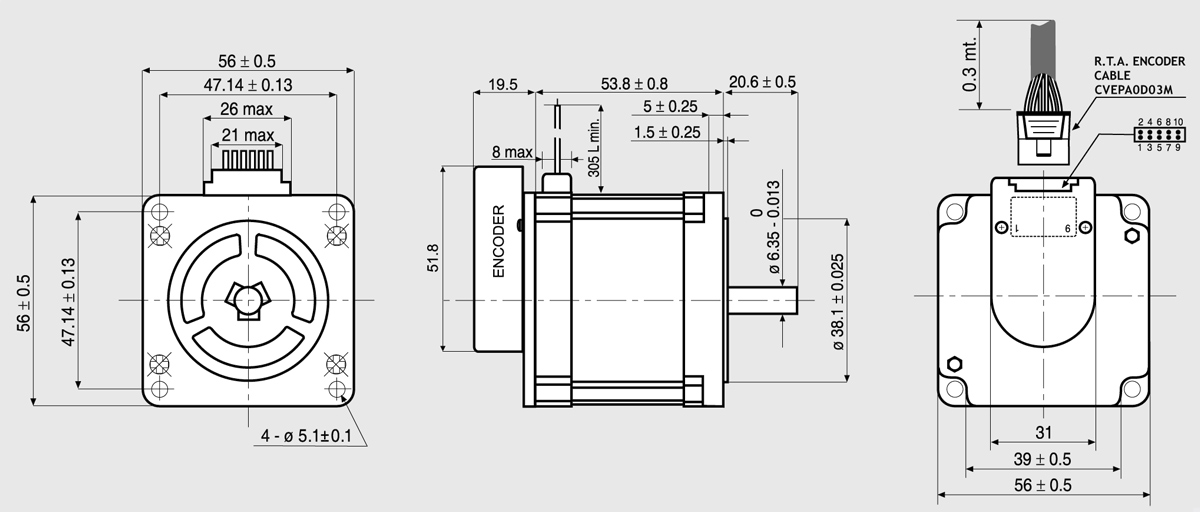

ESPECIFICACIONES TÉCNICAS
