MOTOR CON ENCODER EM 3F1H-0XX0

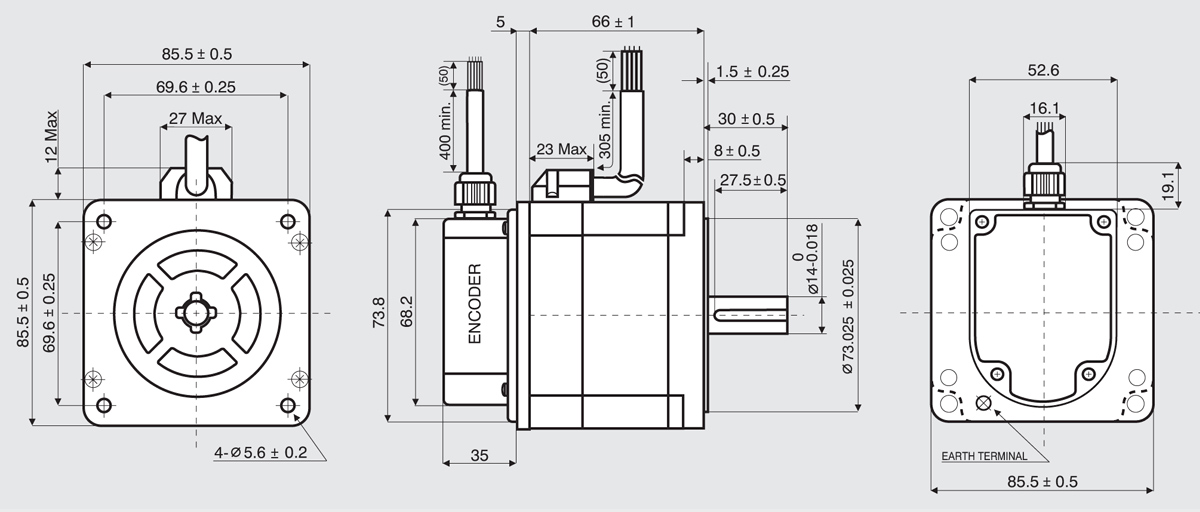

Brida 85.5 mm. Nema 34

INTRODUCCIÓN

EM 3F1H-0XX0 encoder motor is available with three different encoder versions, with 400 cpr and 4000 cpr resolution, with or without index.

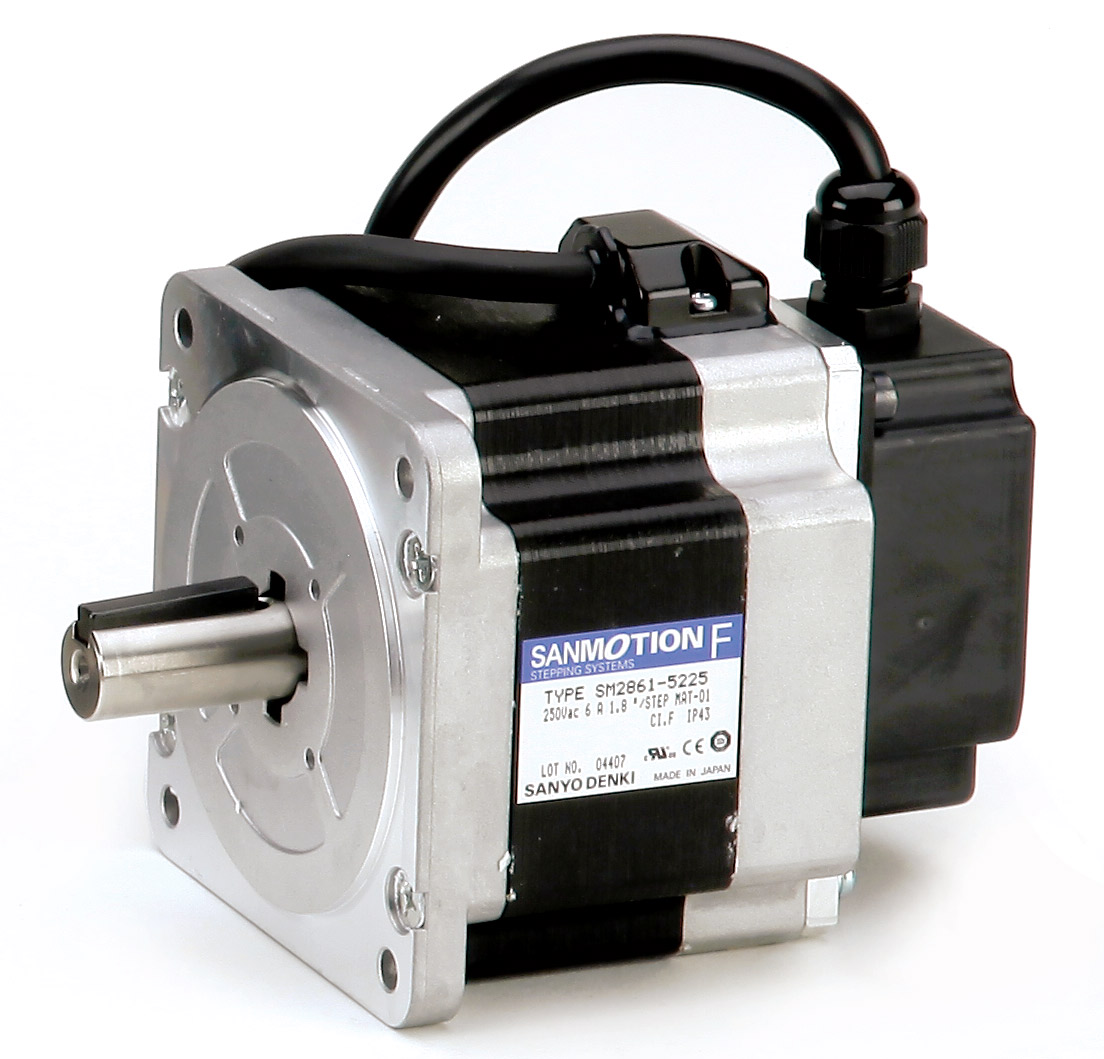

It is characterized by SANYO DENKI stepping motor SM 2861-5225 flange size 85.5 mm. ( NEMA 34 ) with holding torque up to 360 Ncm and it can be coupled with the following R.T.A. drive series: NDC, ADW, HGD, PLUS.

ESPECIFICACIONES TÉCNICAS
