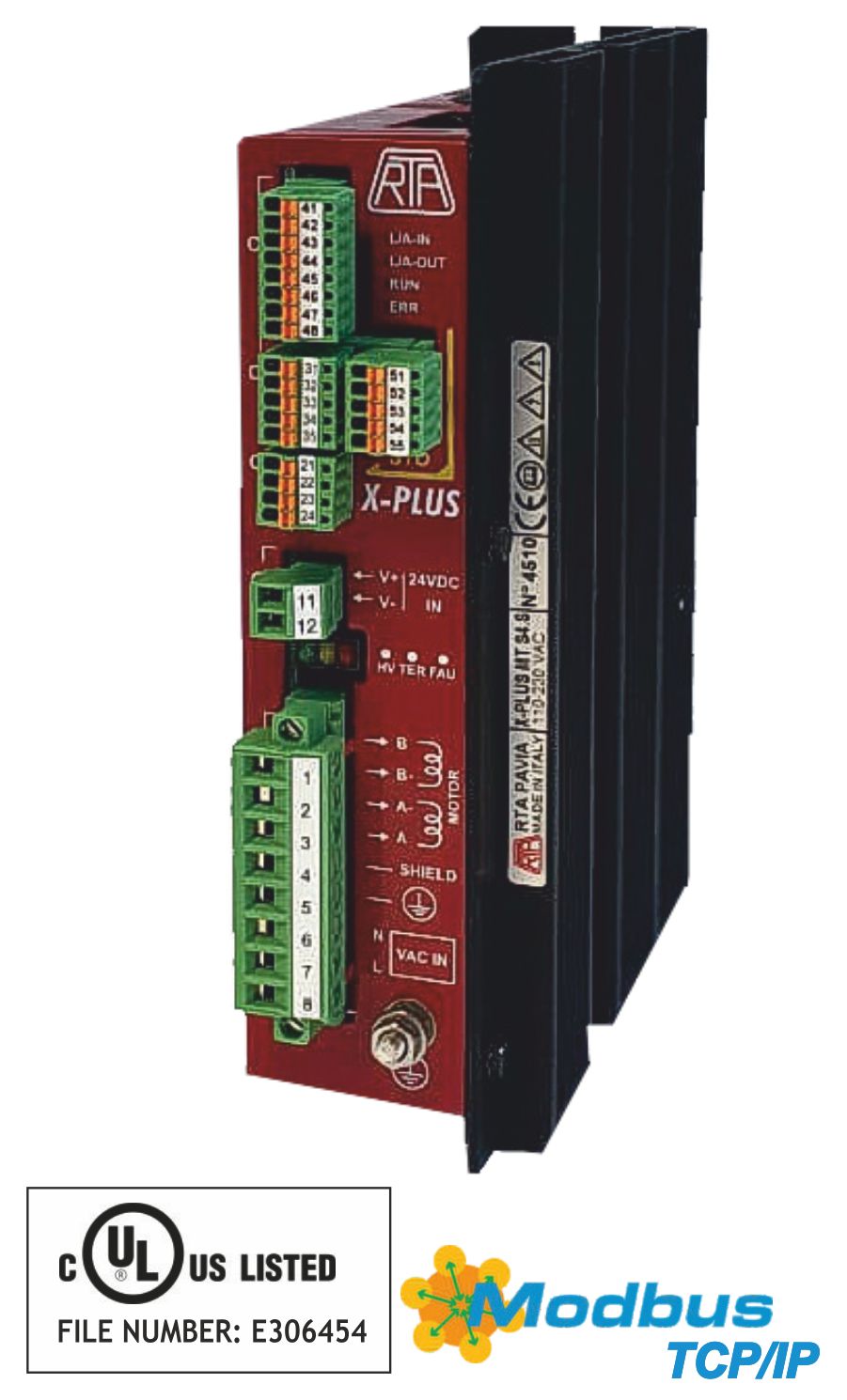

Accionamiento en caja X-PLUS MT S4

INTRODUCCIÓN

►New series of stepping motor drives with Modbus interface, direct input from the main AC power supply and STO function
►Direct connection from the main AC power supply (110 Vac to 230 Vac)
► Auto-Sync function available

HIGHLIGHTS


► Communication by means of Modbus TCP/IP interface
► Modes of operation: PROFILE POSITION, PROFILE VELOCITY and HOMING
► Full digital microstepping drive
► Safe Torque Function (STO) - SIL3 with Error Detection Monitor
► Wide range of SANYO DENKI stepping motors to be coupled with: holding torque up to 9,2 Nm and flange size up to 86 mm
► Easy setup by RTA Modbus configurator software
► UL/CSA

ESPECIFICACIONES TÉCNICAS

► Communications by means of Modbus TCP/IP interface
► Range of operating voltages: 110-230 Vac
► Protections:
-Protection against under-voltage and over-voltage.
-Protection against a short-circuit at motor outputs.
-Overtemperature protection with thermal sensor.
► Electronic damping facility for further acoustic noise and mechanic vibrations reduction
► External fans no needed
► Configurable IP addres via USB port
► Warranty 24 months
► Wide range of motor phase setting
► Motor current overboost
► Different variety of HOMING operation modes
► Encoder feedback
