MOTION CONTROLLERS

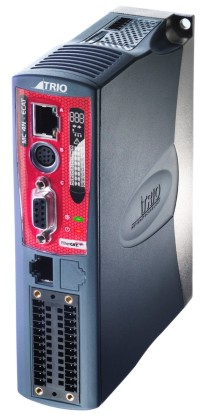

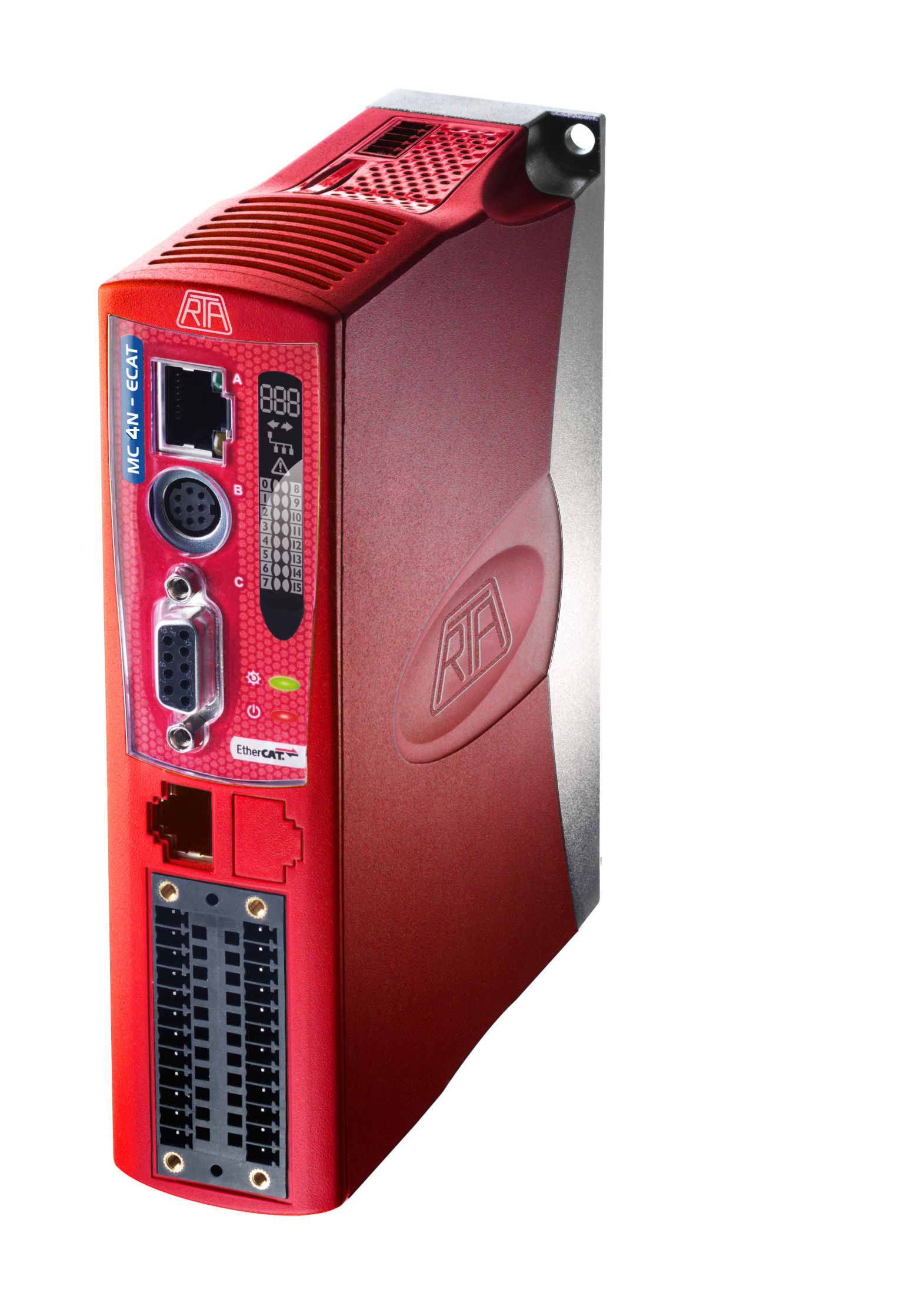

MC4N-ECAT







  • High performance Motion Controller dedicated to running servo and stepper drives via EtherCAT

  • MAIN FEATURES:
    * Up to 32 EtherCAT Digital Drive Axes
    * Supports Position, Speed and Torque Drive Modes
    * Up to 1024 EtherCAT I/O
    * EtherCAT CoE protocol to CiA402
    * Linear, Circular, Helical and Spherical Interpolation
    * Flexible CAM shapes, Linked Motion
    * Isolated Encoder Port
    * EnDAT and SSI Absolute Encoder Supported
    * Hardware Linked Output for Camera / Laser Control
    * Ethernet-IP / Modbus TCP / Trio ActiveX / Uniplay HMI / UDP / Ethernet Interface Built-In
    * Precise 64Bit Motion Calculations with 532MHz ARM 11 Processor
    * IEC 61131-3 Programming
    * Multi-tasking BASIC Programming
    * Text File Handling
    * Robotic Transformations
    * 4 high speed registration inputs
    * Isolated RS232 and RS485 ports
    * SD Memory Card Slot
    * EtherCAT I/O Expansion
    * CANopen I/O Expansion
    * Backlit LCD Display
    * RoHS and CE Approved
    More information at www.triomotion.com

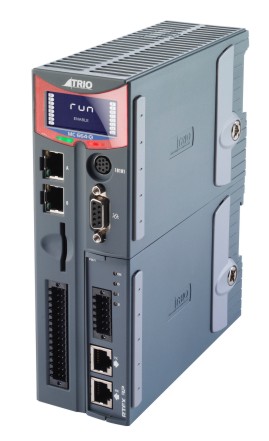

    MC664 / MC664-X







  • Highest performance and most flexible Motion Controller based on the Quad Core Cortex A9 1GHz ARM processor

  • MAIN FEATURES:
    * Up to 128 Axes - 64 Stepper / Servo Axes and 64 Virtual Axes
    * Precise 64 Bit Motion Calculations with Quad Core Cortex A9 1GHz Processor (P862)
    * Dedicated Communications Core (P862)
    * Built-in EtherCAT Port
    * EtherCAT, Sercos, SLM and RTEX Digital Drive Interfaces
    * Linear, Circular, Helical and Spherical Interpolation
    * Flexible CAM shapes, Linked Motion
    * EnDAT, BISS and SSI Absolute Encoder Supported
    * Hardware Linked Outputs for Camera / Laser Control
    * Ethernet-IP / Modbus TCP / Ethernet Interface Built-In
    * Anybus-CC Module for Flexible Factory Comms Including ProfiNet/Profibus
    * IEC 61131-3 Programming
    * Multi-tasking BASIC Programming
    * Text File Handling
    * Robotic Transformations
    * SD Memory Card Slot
    * CANopen + EtherCAT I/O Expansion
    * Backlit LCD Display
    * RoHS and CE Approved
    More information at www.triomotion.com

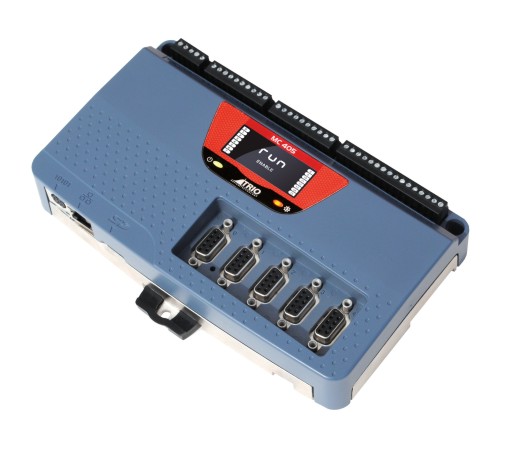

    MC405







  • Advanced 4 Axis Closed Loop Servo / 5 Axis Pulse Direction

  • MAIN FEATURES:
    * Linear, Circular, Helical and Spherical Interpolation
    * Flexible CAM shapes, Linked Motion
    * EnDAT and SSI Absolute Encoder Supported
    * Hardware Linked Outputs for Camera / Laser Control
    * Ethernet-IP / Modbus TCP / Ethernet Interface Built-In
    * 125 – 2000 µsec Selectable Servo Update
    * Precise 64 bit Motion Calculations on ARM11 Processor with VFP
    * IEC 61131-3 Programming
    * Multi-tasking BASIC Programming
    * Text File Handling
    * Robotic Transformations
    * Micro SD Memory Card Slot
    * Robotic Transformations
    * RoHS, UL Listed, CE approved
    * Option: Extended I/O module available
    More information at www.triomotion.com

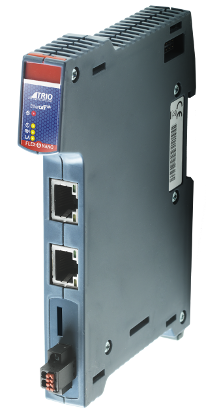

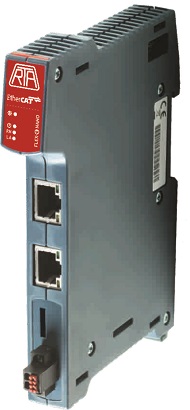

    FLEXSLICE SYSTEM







  • Input/Output modules suitable to fast flexible expansion for motion applications

  • MAIN FEATURES:
    * Use with Trio or 3rd Party EtherCAT Masters
    * High performance, flexible topology and simple configuration.
    * Bus cycle time synchronised with Motion Coordinator Servo Period.
    * Bus coupler module with 2 x RJ45 Ethernet ports for EtherCAT connection.
    * EtherCAT protocol remains fully intact down to individual modules using the E-bus system.
    * I/O functions tightly synchronised to motion using EtherCAT distributed clocks.
    * Automatic mapping to the Motion Coordinator I/O system.
    * DIN rail mounted.
    * Multiple practical push-in connector options – No break outs required.
    * Clip-together design with ‘quick release’ locks for mechanical integrity.
    * User labelling facility
    * Machine builder custom functionality options
    More information at www.triomotion.com

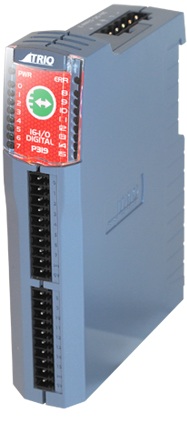

    CAN I/O Modules







  • Input/Output expansion modules suitable to communication and control

  • MAIN FEATURES:
    * Up to 16 P319 modules may be connected to the CAN network which may be up to 100m long.
    * This provides 256 distributed bi-directional input/output channels at 24Vdc level. All input points are high level, (24V = ON) all outputs are short-circuit proof and the I/O is completely isolated from the CANbus.
    * P319 modules may be mixed on the same bus, with other types in the Trio CAN I/O range. The Trio CANbus I/O expansion can considerably reduce machine wiring.
    More information at www.triomotion.com

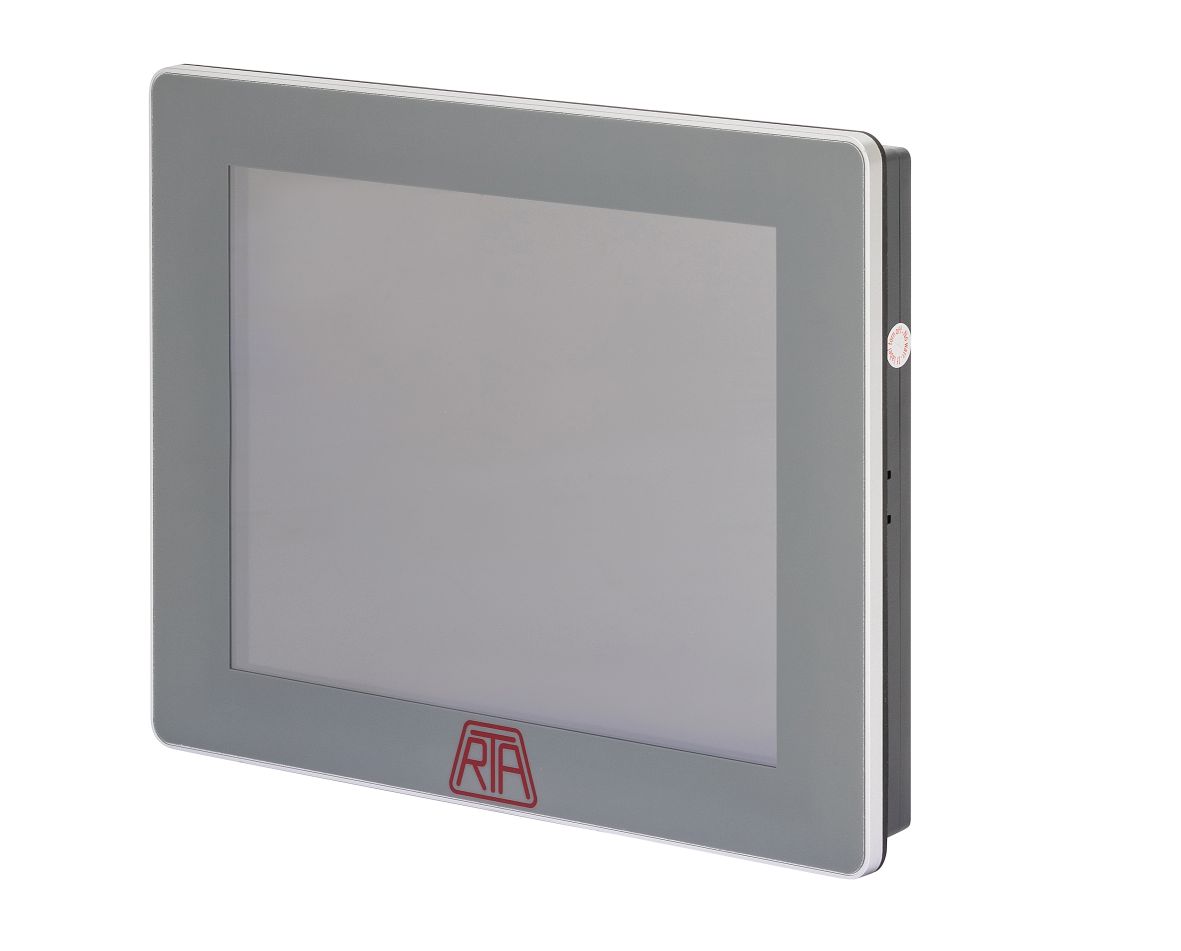

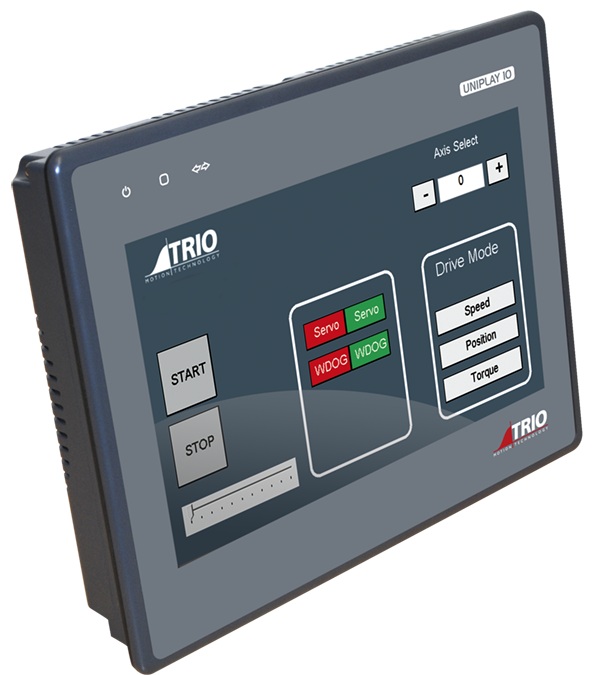

    UNIPLAY HMI 7" / 10"







  • UNIPLAY HMI system to make operator interfaces better, easier and more secure

  • MAIN FEATURES:
    * Single point HMI programming inside Motion Perfect v3
    * Centralised program / HMI screen storage in Motion Perfect v3 project
    * Easily display any controller data type + graphics
    * No need to separately program HMI panel
    * 7" and 10" UNIPLAY sealed touch panels available
    * Ethernet connection reduces wiring
