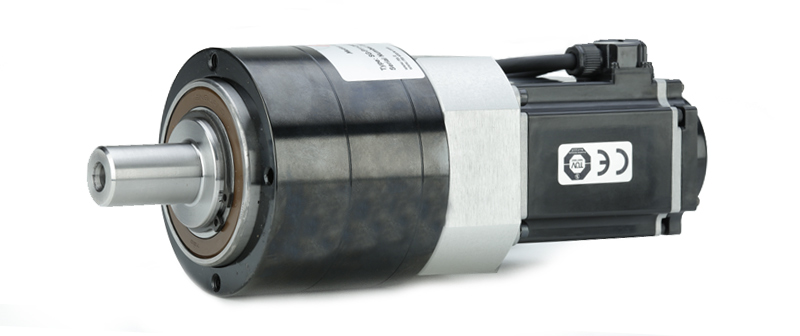

REDUCTORES PLANETARIOS PARA SERVOMOTORES
Nombre del modelo | Cuerpo del reductor (mm.) | Relación de transmisión | Velocidad máxima (min-1) | Precision (minutos de arco) | Par de Emergencia (Nm) | Acoplamiento del motor (tamaño de la brida) |
---|---|---|---|---|---|---|
SG-P12-040-005-15-R2-0100 | 40 | i=05 | 5000 | 15' | 30 | 40 mm |
SG-P12-040-010-15-R2-0100 | 40 | i=10 | 5000 | 15' | 25 | 40 mm |
SG-P12-040-025-19-R2-0100 | 40 | i=25 | 5000 | 19' | 30 | 40 mm |
SG-P11-070-005-12-R2-0X00-00000 | 70 | i=05 | 5000 | 12' | 70 | 60 mm. |
SG-P11-070-010-12-R2-0X00-00000 | 70 | i=10 | 6000 | 12' | 60 | 60 mm. |
SG-P11-090-005-12-R2-0750-00000 | 90 | i=05 | 4500 | 12' | 160 | 80 mm. |
SG-P11-090-005-12-R2-1000-00000 | 90 | i=05 | 4500 | 12' | 160 | 100 mm. |
SG-P11-090-010-12-R2-0400-00000 | 90 | i=10 | 6000 | 12' | 150 | 60 mm. |
SG-P11-090-010-12-R2-0750-00000 | 90 | i=10 | 6000 | 12' | 150 | 80 mm. |
SG-P11-090-025-15-R2-0X00-00000 | 90 | i=25 | 4000 | 12' | 160 | 60 mm. |
SG-P11-120-010-12-R2-0750-00000 | 120 | i=10 | 6000 | 12' | 150 | 80 mm. |
SG-P11-120-010-12-R2-1000-00000 | 120 | i=10 | 5000 | 12' | 300 | 100 mm. |
SG-P11-120-025-15-R2-0750-00000 | 120 | i=25 | 4500 | 12' | 360 | 80 mm. |
SG-P11-120-025-15-R2-1000-00000 | 120 | i=25 | 4500 | 12' | 360 | 100 mm. |
